The merits/weak points of the cache system

Asia Pacific Institute of Information Technology

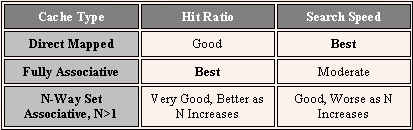

Here's a summary table of the different cache mapping techniques and their relative performance:

In the "real world", the direct mapped and set associative caches are by far the most common. Direct mapping is used more for level 2 caches on motherboards, while the higher-performance set-associative cache is found more commonly on the smaller primary caches contained within processors.
